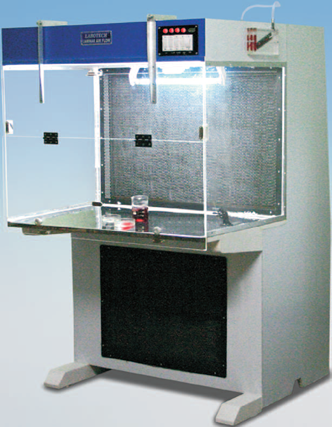

| LAMINAR AIR FLOW CABINETS (HORIZONTAL) |
- Laminar flow principle involves double filteration of air through coarse prefilters (up to 5 microns) and Hepa filter (down to 0.3 microns) for filteration of biological and particulate contaminants. A constant uni-directional air flow is drawn from atmosphere and passed through pre and hepa filters on the work surface.
- Fabricated out of reinforced ply board which is clad in from out side in laminated sheet and inner exposed area are finished in epoxy paint. Table top covered with non-glaring laminated sheet or stainless steel sheet(optional).
- Side panels are fixed and are made out of thick acrylic sheet. The front door is folding type and made of thick acrylic sheet(optional). Stand is built in type or
detachable.
- Blower unit has AU or equivalent motor and is dynamically balanced with minimalsound & vibration level.
- Fluoresent lighting is also provided. A suitable UV tuibe is provided for sterillizatin.
- An acrylic block type manometer to measure static pressure inthe chamber has been installed.
- Two way gas tap for gas line has also been provided.
|
 |
| |
| Chamber Sizes |
| Size in mm |
Size in feets |
| 600 x 600 x 600 |
2' x 2' x 2' |
| 900 x 600 x 600 |
3' x 2' x 2' |
| 1200 x 600 x 600 |
4' x 2' x 2' |
| 1800 x 600 x 600 |
6' x 2' x 2' |
|
| |
| Optional |
- Stainless steel table top.
- Folding front door made of arylic sheet.
|
